1.RabbitMQ 背景

  1. 概括说就是一种消息中间件, AMQP(高级消息队列协议)的一种具体实现, 类似的还有阿里的RocketMQ, Kafka等, 其中的MQ的意思是Message Queue, 专业解释就是消息总线，是一种跨进程、异步的通信机制，用于上下游传递消息, 确保消息的可靠传递;

  2. 主要用于软件解耦、异步、流量削锋、数据分发、错峰流控、日志收集等;

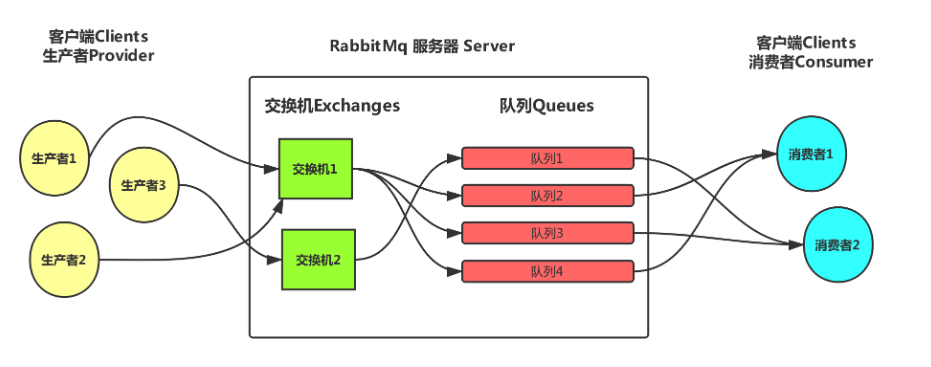

  3. 整体架构图(来自网络):

    一句话概括就是, 生产者把消息发布到Exchange上，消息最终到达队列并被消费者接收，而Binding决定交换器的消息应该发送到哪个Queue。

    javascript

2.一类实现逻辑

Springboot已经有适配的各种模版了, 下面我来介绍两种普遍方法, 一种是用现成的rabbitmq注解和配置, 另一种是手动实现注册SimpleMessageListenerContainer, 并手动注入链接配置信息, 两种方法在大体上都分三部分, 如下:

  1. mq链接配置信息, 用springboot template可直接配置在application.yaml中spring.rabbitmq下, 或自定义配置
  2. 启动rabbitmq的监听容器
  3. 写入q的方法就可直接调用了, 读取q需要注册进消息处理部分, 比如读取到消息直接存储redis缓存等操作

3. 两种实现方法

首先都得导入spring amqp依赖

1
2
3
4

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>

方法一: springboot rabbitTempale 省事全家桶方法

1.1 yaml或properties配置链接信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

server:
  port: 8080

spring:
  rabbitmq:
    addresses: xxxxx
    virtual-host: xxxx
    username: xx
    password: xxx
    template:
      exchange: xxx
      routing-key: xxxx
      default-receive-queue: xxxx
    listener:
      simple:
        acknowledge-mode: manual
        concurrency: 3
        max-concurrency: 10

1.2 注册queue和绑定关系到spring bean中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

@Component
public class RabbitMqConfig {

    @Value("{$spring.rabbitmq.template.default-receive-queue}")
    private String queueName;

    @Value("{$spring.rabbitmq.template.exchange}")
    private String exchangeName;

    @Value("{$spring.rabbitmq.template.routing-key}")
    private String routingName;

    @Bean
    public Queue directDueue() {
        return new Queue(queueName, true);
    }

    @Bean
    public DirectExchange directExchange() {
        return new DirectExchange(exchangeName, true, false);
    }

    //直接绑定交换机和消息队列及路由规则
    @Bean
    public Binding binding() {
        return BindingBuilder.bind(directDueue()).to(directExchange()).with(routingName);
    }

}

1.3 发送简单message方法, 只需要Autowired RabbitTemplate直接在其他service方法中调用即可

1
2
3
4
5
6
7
8
9
10
11
12

@Configuration
public class ProduceService {
    @Autowired
    private RabbitTemplate rabbitTemplate;

    /**
     * 一对一通信,发送消息
     */
    public void directSend(String messages){
        rabbitTemplate.convertAndSend("queue-only", messages);
    }
}

1.4 注册监听queues到bean, 并加入对queue处理逻辑方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

@Component
public class ConsumerService {

    @RabbitListener(queues = "XXXX")
    public void listenerQueue(String msg, Channel channel, Message message) throws IOException {
        System.out.println(msg);

        try {
            // 框架容器，是否开启手动ack按照框架配置
            channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
        } catch (Exception e) {
            e.printStackTrace();
            //丢弃这条消息
            channel.basicNack(message.getMessageProperties().getDeliveryTag(), false, false);
        }

    }
}

####方法二: 手动注册 SimpleMessageListenerContainer容器

2.1 配置yaml, 可随意定义名称

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

online:
  request:
    rabbitmq:
      addresses: xxxx
      virtual-host: xxxx
      username: xxxx
      password: xxxx
      exchange: xxxx
      routing-key: xxxx
  response:
    rabbitmq:
      addresses: xxxx
      virtualHost: xxxx
      username: xxxx
      password: xxxx
      queue: xxxx
      exchange: xxxx
      routing: xxxx
confirm:
  rabbitmq:
    consumer-no: 3
    prefech-no: 10

2.2 spring定义加载配置信息类

1
2
3
4
5
6
7
8
9
10
11
12
13

@Data
@Configuration
@ConfigurationProperties(prefix = "online.request.rabbitmq")
//发送q配置
public class RequestProperties {
    private String addresses;
    private String virtualHost;
    private String username;
    private String password;
    private String exchange;
    private String routingKey;

}

1
2
3
4
5
6
7
8
9
10
11
12
13

@Data
@Configuration
@ConfigurationProperties(prefix = "online.response.rabbitmq")
//接收q配置
public class ResponseProperties {
    private String addresses;
    private String virtualHost;
    private String username;
    private String password;
    private String queue;
    private String exchange;
    private String routingKey;
}

2.3 发送和接收处理

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

@Configuration
//手动注册ConnectionFactory, 实现进RabbitTemplate已备其他类直接调用发送q
public class RequestMQConfig {

    @Bean(name = "requestConnectionFactory")
    public ConnectionFactory destinationConnectionFactory(RequestProperties requestProperties) {
        CachingConnectionFactory cachingConnectionFactory = new CachingConnectionFactory();
        cachingConnectionFactory.setAddresses(requestProperties.getAddresses());
        cachingConnectionFactory.setVirtualHost(requestProperties.getVirtualHost());
        cachingConnectionFactory.setUsername(requestProperties.getUsername());
        cachingConnectionFactory.setPassword(requestProperties.getPassword());

        return cachingConnectionFactory;
    }

    @Bean(name = "requestMQTemplate")
    public RabbitTemplate rabbitTemplate(@Qualifier("requestConnectionFactory") ConnectionFactory connectionFactory,
        RequestProperties prop, ObjectMapper objectMapper) {

        RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
        rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter(objectMapper));
        rabbitTemplate.setExchange(prop.getExchange());
        rabbitTemplate.setRoutingKey(prop.getRoutingKey());

        return rabbitTemplate;
    }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

//发送q调用类
public class RequestCommandHandler {
    @Autowired
    @Qualifier("requestMQTemplate")
    private RabbitTemplate mqTemplate;

    private static final ObjectMapper objectMapper = new ObjectMapper();

    public void requestQ() {
       MessagePostProcessor messagePostProcessor = new MessagePostProcessor() {
       @Override
       public Message postProcessMessage(Message message) throws AmqpException {
           message.getMessageProperties().setHeader("content-type", "application/json");
           message.getMessageProperties().setHeader("Message-Type", "request");
           message.getMessageProperties().setHeader("Version", "1.0.0");
           return message;
           }
       };
      mqTemplate.convertAndSend(bulidMessage(objectMapper.writeValueAsString(requestMsg)), 	\      messagePostProcessor);
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

@Configuration
//注册监听q, 并注入处理逻辑container.setMessageListener(adapter), ResponseListener handler这里是业务处理
public class ResponseListenerConfig {
    @Value("${confirm.rabbitmq.consumer-no}")
    private Integer consumerNumber;

    @Value("${confirm.rabbitmq.prefech-no}")
    private Integer prefechNumber;

    @Autowired
    private ResponseProperties mqProperties;

    @Bean("responseConnectionFactory")
    public CachingConnectionFactory responseConnectionFactory() {
        CachingConnectionFactory connectionFactory = new CachingConnectionFactory();
        connectionFactory.setVirtualHost(mqProperties.getVirtualHost());
        connectionFactory.setAddresses(mqProperties.getAddresses());
        connectionFactory.setUsername(mqProperties.getUsername());
        connectionFactory.setPassword(mqProperties.getPassword());
        return connectionFactory;
    }

    @Bean
    public DirectExchange exchange() {
        return new DirectExchange(mqProperties.getExchange(), true, false);
    }

    @Bean
    public Queue queue() {
        return new Queue(mqProperties.getQueue(), true);
    }

    @Bean
    public Binding binding() {
        return BindingBuilder.bind(queue()).to(exchange()).with(mqProperties.getRoutingKey());
    }

    @Bean
    public SimpleMessageListenerContainer responseListenerContainer(
        @Qualifier("responseConnectionFactory") ConnectionFactory responseConnectionFactory,
        ResponseListener handler,
        ObjectMapper objMap) {

        SimpleMessageListenerContainer container = new SimpleMessageListenerContainer();
        container.setConnectionFactory(responseConnectionFactory);
        container.setQueues(queue());

        container.setConcurrentConsumers(consumerNumber);
        container.setPrefetchCount(prefechNumber);

        MessageListenerAdapter adapter = new MessageListenerAdapter(handler);
        adapter.setDefaultListenerMethod("handle");
        adapter.setMessageConverter(new NotificationConverter(ResponseOnline.class, objMap));

        container.setMessageListener(adapter);
        return container;
    }
}

以上就是rabbitmq整个逻辑处理流程, 可根据实际项目自由发挥
