Docker 搭建 ELK 日志记录框架详细步骤:

docker create network elknet
docker run -d --name elasticsearch --network elknet --network-alias elasticsearch -p 9200:9200 -p 9300:9300 -e "discovery.type=single-node" elasticsearch:7.9.1
docker run -d --name kibana --network elknet --network-alias kibana -p 5601:5601 kibana:7.9.1
docker run -d --name logstash --network elknet --network-alias logstash -p 5044:5044 logstash:7.9.1
配置的log4j2发送tcp到logstash
vi /usr/share/logstash/pipeline/logstash.conf

input {
  tcp {
    port => 5044
    mode => "server"
  }
}

output {
  elasticsearch {
    hosts => ["elasticsearch:9200"]
    index => "apidemo"
  }

  stdout{
    codec => rubydebug
  }
}

vim log4j2.xml

<appenders>
  +
  <Socket name="LogstashTcp" host="你的localhost" port="5044" protocol="TCP">
    <PatternLayout>
      <Pattern>%d{HH:mm:ss.SSS} %-5level method:%l%n%m%n</Pattern>
    </PatternLayout>
  </Socket>
</appenders>

<loggers>
  <root level="trace">
    +
    <appender-ref ref="LogstashTcp"/>
  </root>
</loggers>

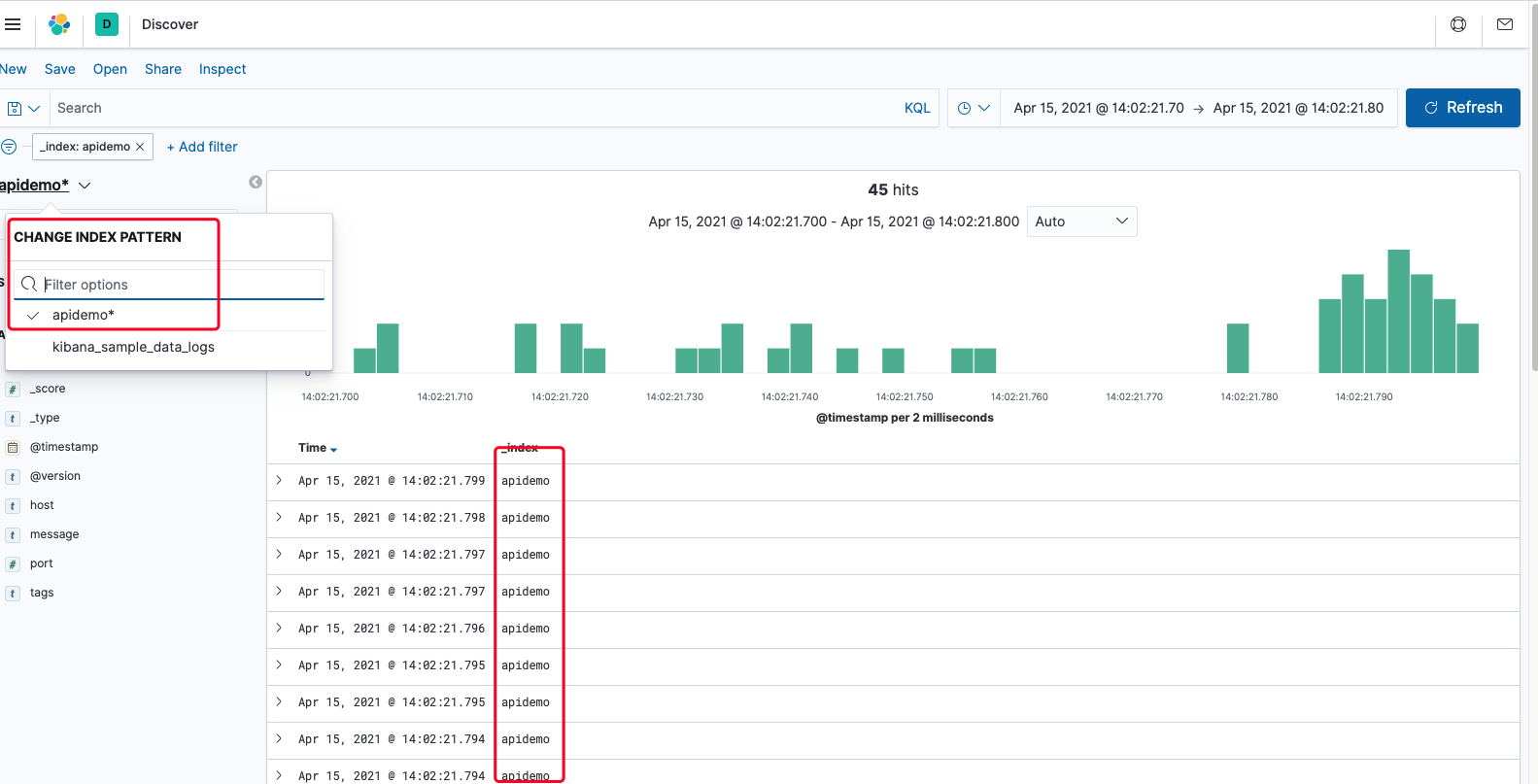

Kibana上添加apidemo index, 然后查询refash就显示数据了
